01/ Product Introduction
02/ Product Features

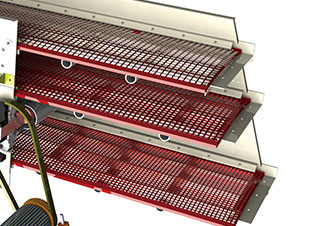

Vibration Exciter
Vibration exciter Self-aligning device and cabient adopts split type module design make maintenance easier replace the more convenient and minimize downtime.

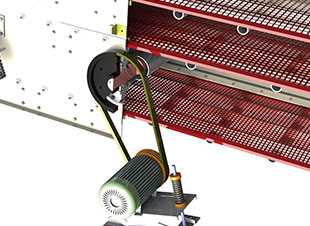

Increase Transmission Device
Increase transmission device to improve the efficiency of motor drive prolong the service life of the triangle; to ensure the equipment running concentricity greatly increase the service life of bearing.

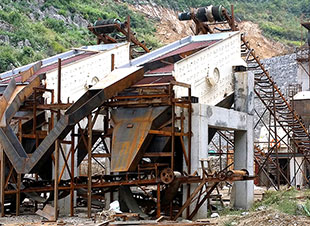

Widen The First Hopper
First hopper widened and one-piece design can avoid impact of screen directly when feeding at the same time can ensure the hopperstrength.

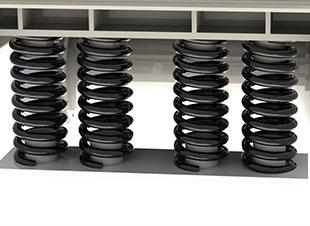

Vibration Support Device
Vibration supporting device uses rotation shaft the vibrating screen can be adjusted from 10 to 20 degrees to meet different screening demands of customers.03/ Technical Parameters
|
Model
|
layers
|
Size of Sieve
Pore(mm)
|
Feeding Size
(mm)
|
Capacity
3
(m /h)
|
Double
Amplitude(mm)
|
Vibrating frequency |
Power
(kw)
|
Screen
Specification(mm)
|
| YZS1237 | 1 | 3-50 | 200 | 10-120 | 5-9 | 870 | 11 | 1200×3700 |
| 2YZS1237 | 2 | 3-50 | 200 | 10-120 | 5-9 | 870 | 11 | 1200×3700 |
| 2YZS1548 | 2 | 3-100 | 400 | 30-275 | 5-9 | 870 | 15 | 1500×4800 |
| 3YZS1548 | 3 | 3-100 | 400 | 30-275 | 5-9 | 870 | 15 | 1500×4800 |
| 2YZS1848 | 2 | 3-100 | 400 | 56-330 | 5-9 | 870 | 18.5 | 1800×4800 |
| 3YZS1848 | 3 | 3-100 | 400 | 56-330 | 5-9 | 870 | 18.5 | 1800×4800 |
| 2YZS1860 | 2 | 3-100 | 400 | 65-586 | 5-9 | 870 | 22 | 1800×6000 |
| 3YZS1860 | 3 | 3-100 | 400 | 65-586 | 5-9 | 870 | 22 | 1800×6000 |
| 4YZS1860 | 4 | 3-100 | 400 | 65-586 | 5-9 | 870 | 22 | 1800×6000 |
| 2YZS2160 | 2 | 3-100 | 400 | 81-720 | 5-9 |
730
|
30 | 2100×6000 |
| 3YZS2160 | 3 | 3-100 | 400 | 81-720 | 5-9 |
730
|
30 | 2100×6000 |
| 4YZS2160 | 4 | 3-100 | 400 | 81-720 | 5-9 |
730
|
30 | 2100×6000 |
| 2YZS2460 | 2 | 3-150 | 400 | 100-810 | 5-9 | 700- 900 | 37 | 2400×6000 |
| 3YZS2460 | 3 | 3-150 | 400 | 100-810 | 5-9 | 700- 900 | 37 | 2400×6000 |
| 4YZS2460 | 4 | 3-150 | 400 | 100-810 | 5-9 | 700- 900 | 37 | 2400×6000 |
