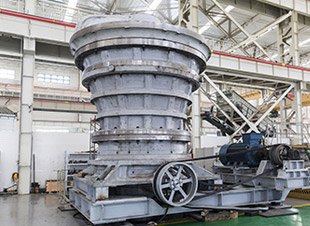

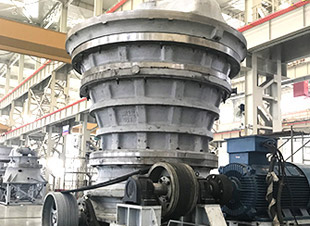

HGT Gyratory Crusher

01/ Product Introduction

Large processing capacity high efficiency and large feeding cavity integrated moving cone high-precision eccentric copper sleeve multi-point monitoring of temperature and speed intelligent automatic control。

02/ Product Features

Easy Operation and Maintenance
HGT has lubrication system that can lubricate heat up cool and circulate automatically.
Intense and Continuous Operation
Super-heavy frame integral forged main shaft with big diameter and high-quality bearings.
High-Capacity and Low Costs
HGT crushing cavity design ensures bigger input size and longer liner service life.
Heavy-Duty Main Shaft Design
Integral forged main shaft nut thread located on replaceable alloy protection sleeve robustness increased.

03/ Technical Parameters

Model	Feeding opening(mm)	最大功率(KW)	140(mm)	150(mm)	165(mm)	175(mm)	190(mm)	200(mm)	215(mm)	230(mm)	240(mm)	250(mm)
HGT4265	1065	400	2015	2340	2520	2875	-	-	-	-	-	-
HGT5065	1270	400	-	2400	2785	2940	-	-	-	-	-	-
HGT5475	1370	450	-	2890	2990	3150	3340	3490	-	-	-	-
HGT6275	1575	450	-	2895	3620	3820	4210	4335	-	-	-	-
HGT6089	1525	630	-	-	4200	4545	5085	5300	5535	5810	-	-
HGT60110	1525	1250	-	-	-	5540	6950	7340	7575	8285	8600	8895

The above processing capacity is based on the following assumptions: 100% of the feed passes through 80% of the feed port width 80% passes through 60% of the feed port width and 50% passes through 10% of the sieve without the maximum feed block size. These capacity values are applicable to materials with loose density of 1.6t/m3. All capacity values are calculated at the maximum eccentricity of each equipment. All capabilities depend on different applications. The factors considered in determining the total crushing capacity include: logistics characteristics feed particle size material distribution work index water content and feeding method. Please consult Vipeak to determine your handling requirements.
