01/ Product Introduction

Clear part division and accurate positioning. Three-chamber type is suitable for tertiary crushing and two-chamber type for primary and secondary crushing. Final products are of more cubic shape. Discharge port can be adjusted simplifying the crushing process.

02/ Product Features

Hydaulic frame Opening
Equipped with hydraulic frame opening device and the spare parts such as hammer can be changed quickly.
Discharge Sizes Adjustable
Hydraulic adjustment device is used so the discharging size can be changed quickly reducing the downtime and maintenance time.
Integral Cast Bearing Seat
Integral cast steel structure is adopted for bearing seat and radial strength of the bearing seat is highly strengthened.
Reliable Hammer Fixing Design
The unique splint and wedge are matched in the plate hammer fixing device reliable and easier to change.

03/ Technical Parameters

Model	Rotor size	Feed Opening(mm)	Max.Feeding Size (mm)	Capacity(t/h)	Power(kw)	Dimension(L×W×H)mm	Weight（t）
PFW1214Ⅲ	φ1150×1400	570x1430	250	90-170	132	2550×2310×2100	16
PFW1315Ⅲ	φ1300×1500	625x1530	300	180-270	200	2960×2570×2380	20
PFW1415Ⅲ	φ1400×1500	800x1530	350	280-350	250	3120×2650×2660	22.5

04/ Inquiry Us

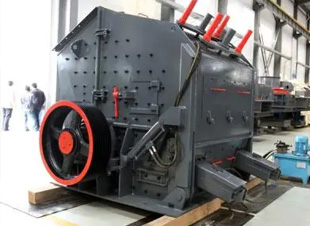

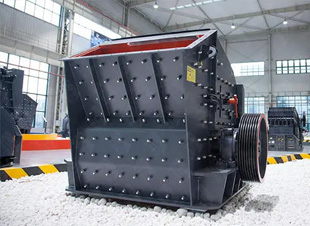

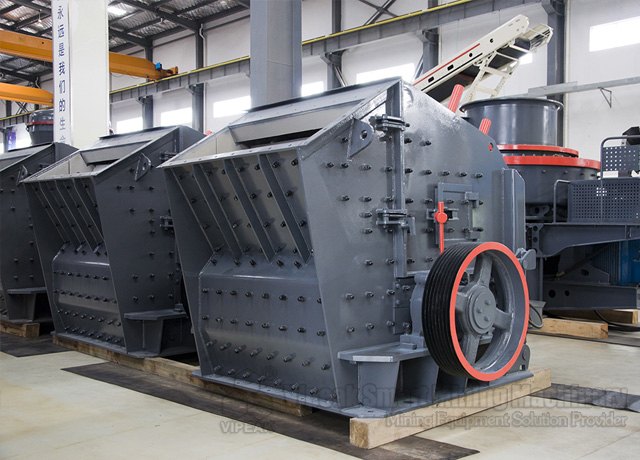

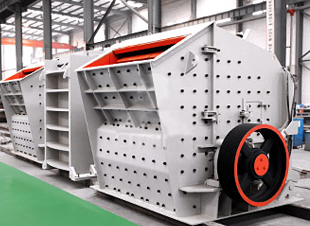

PFW Impact Crusher
